Sale!

Home » Shop » NEMA 23 Stepper Motor, HANPOSE 23HS5628 High Torque – 2.8A, 126N.cm, D-8MM

NEMA 23 Stepper Motor, HANPOSE 23HS5628 High Torque – 2.8A, 126N.cm, D-8MM

Original price was: ₵400.00.Current price is: ₵320.00.

The HANPOSE 23HS5628 NEMA 23 stepper motor offers 126N.cm torque at 2.8A, with a D-8mm shaft, perfect for CNC milling, 3D printing, and robotic applications.

Categories: Actuators, Machinery, Motors, Robotics

Description
Reviews (0)

Description

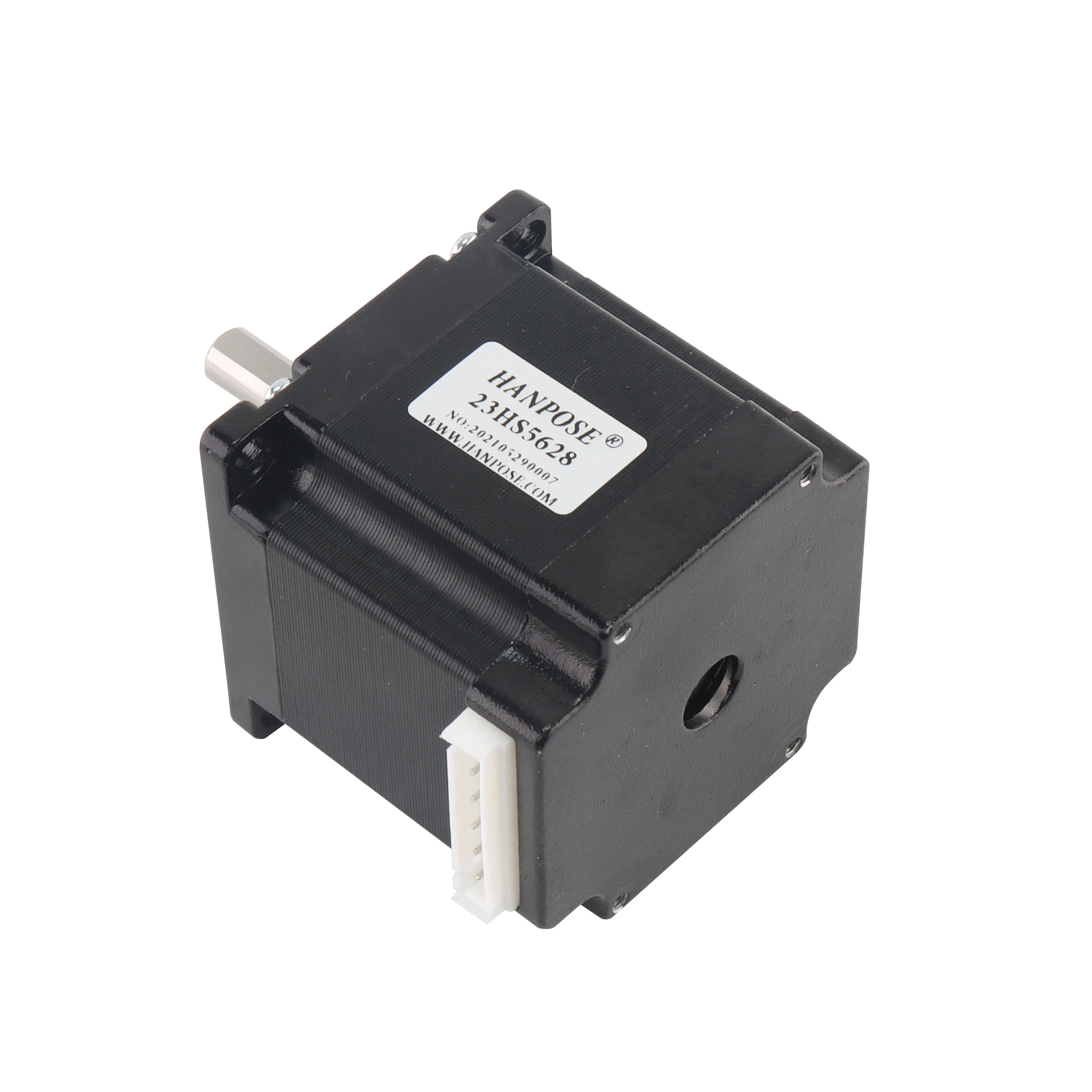

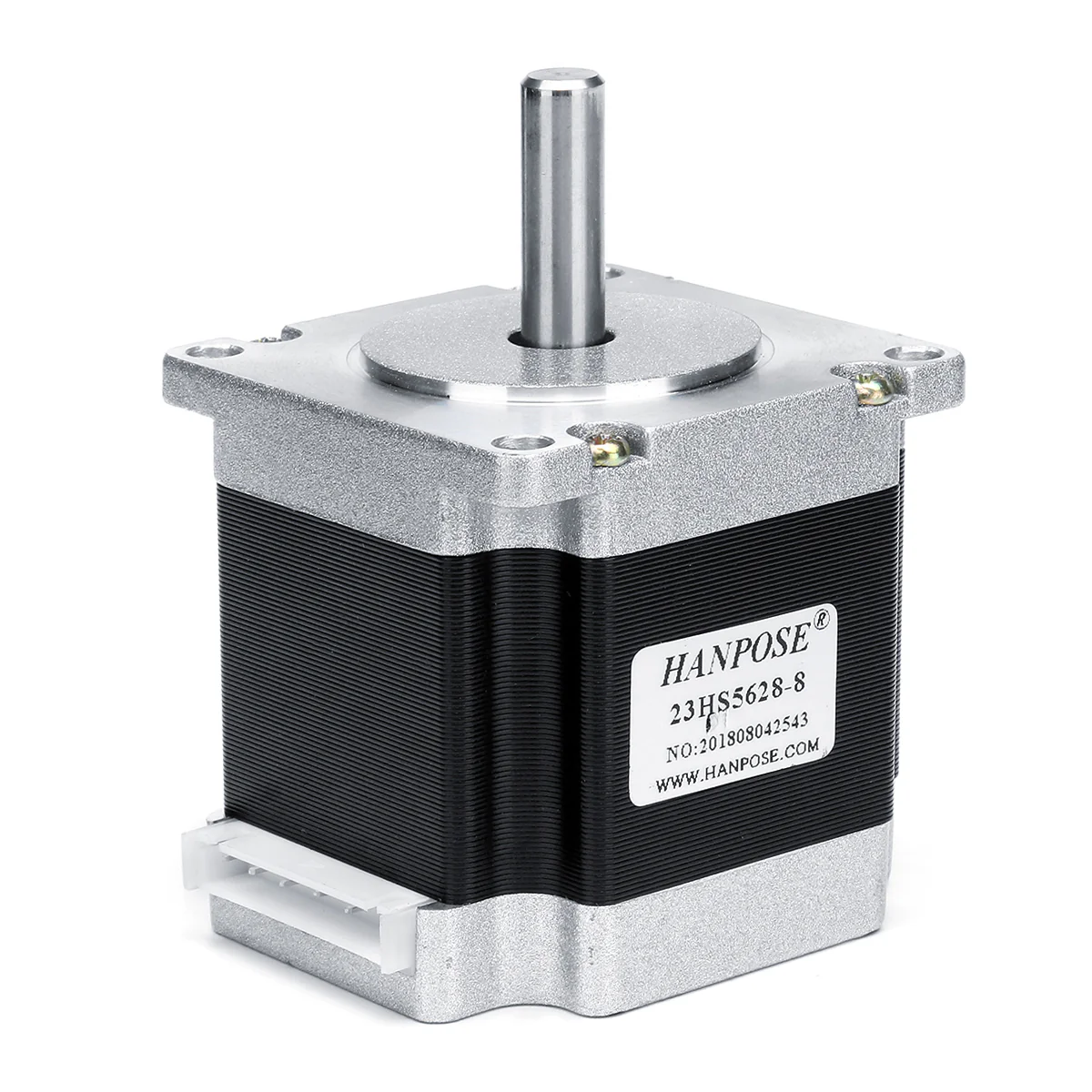

The HANPOSE 23HS5628 High Torque NEMA 23 Stepper Motor is a robust 2-phase hybrid stepper motor designed for precision and power in demanding applications. With a holding torque of 126N.cm (approximately 178oz.in), it delivers reliable performance for CNC milling machines, 3D printers, laser cutters, and robotic arms. Operating at a rated current of 2.8A per phase, it features a compact 57x57x56mm frame with a 56mm body length and a durable D-8mm shaft, ideal for secure coupling in mechanical setups. The motor uses a 1.8° step angle (200 steps per revolution), with four-lead wiring (bipolar configuration) and a 30cm lead for easy integration. It is compatible with a voltage range of 12-24V, making it versatile for various power supplies, and is constructed with a pure copper coil and high-hardness steel shell for stability and longevity.

This RoHS, CE, FCC, and ISO-certified motor excels in high-torque environments, supported by its permanent magnet silicon steel sheet design, which reduces vibration and heat during operation. It pairs seamlessly with stepper drivers like the DM542 or TB6600, enhancing its utility in your electronics kit. For Arduino use, connect the four leads (e.g., A+ to red, A- to green, B+ to yellow, B- to blue) to a compatible driver, power with 24V, and use the AccelStepper library for precise control. Applications include CNC milling, engraving, plasma cutting, and 3D printing extruder systems, with potential integration with your RF 433MHz module for wireless operation or a 16×2 LCD for status display. Operating from -10°C to +50°C, it weighs approximately 1kg (single gross weight) and comes in a 15x15x5cm package. Note: Use with a driver rated for 2.8A or higher and ensure proper heat dissipation for continuous use.
