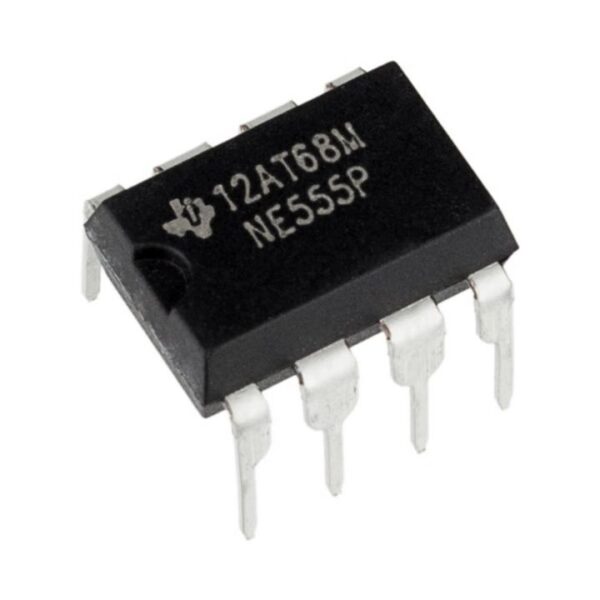

NE555 Precision Timer IC

The NE555 Precision Timer IC is a classic integrated circuit renowned for its reliability and flexibility in timing and pulse generation applications. Operating as a monostable (one-shot) or astable (oscillator) timer, the NE555 can produce time delays ranging from microseconds to hours, depending on external resistor and capacitor values. It supports a wide supply voltage range of 4.5V to 16V and delivers an output current of up to 200 mA, making it capable of driving small loads directly. With a frequency range up to 500 kHz and a temperature stability of 0.005% per °C, this IC excels in applications like pulse width modulation (PWM), waveform generators, and LED flashers. Housed in an 8-pin DIP or SOIC package, the NE555 features adjustable duty cycles and operates reliably from 0°C to 70°C. Whether you’re building a simple blinking light or a complex control circuit, the NE555 is an essential component for any electronics toolkit.
