Shop/ICs-Integrated circuits/Dual Channel L298N DC Motor Driver Board PWM Speed Dual H Bridge Stepper Module
Sale
ICs-Integrated circuitsOut of stock
Dual Channel L298N DC Motor Driver Board PWM Speed Dual H Bridge Stepper Module
The L298N module is an H-Bride circuit used to alternate voltage polarities on a Load. It is mostly used in Robotics to control the forward and backward movement of dc motors. It can be used to control the stepper motors too. It has 2 separate channels so it can control 2 independent loads.
GHS 18.00GHS 12.00
Description
Features:
1.Dual H-bridge motor driver, can drive two DC motors or a 4-wire two-phase stepper motors
2.Built-in TSD, without worrying about motor stall
3.small size, suitable for assembly and car
Specification:
1.Module supply voltage: DC 2V-10V
2.Signal input voltage: DC 1.8-7V
3.Single working current: 1.5A
4.Peak current up to 2.5A
5.Low standby current (less than 0.1uA)
6.Built-in common conduction circuit, the input terminal vacant, the motor does not malfunction

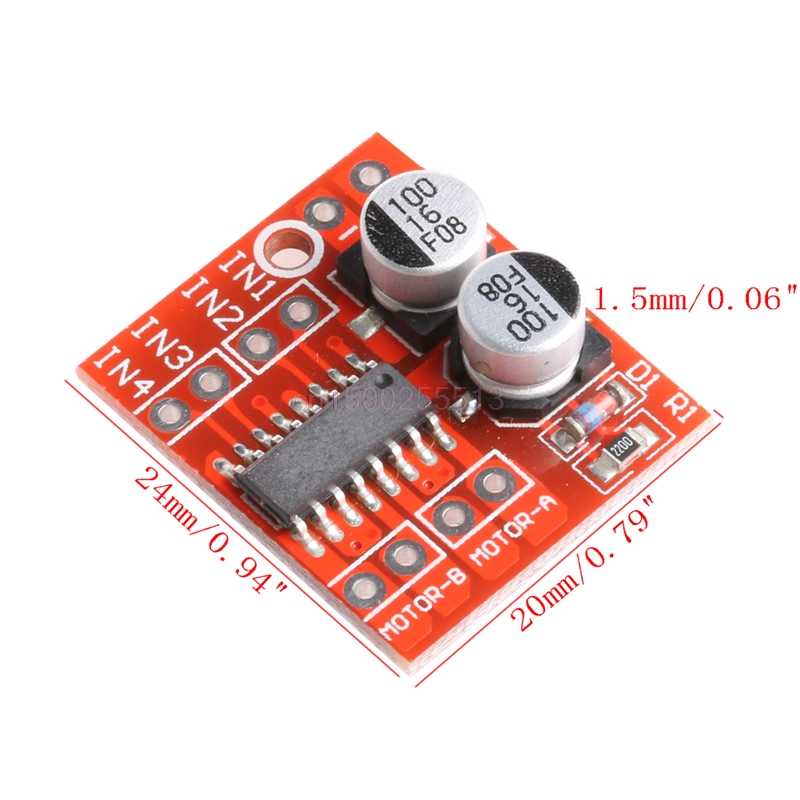

7.Size: 24.7 x 21 x 7mm
8.Mounting hole diameter: 2 mm
